ULTRASOUND SCANNER iScan2 MULTI
ULTRASOUND SCANNER iScan2 MULTI
The iScan line of reliable ultrasound scanners has a new family member! iScan2 MULTI is a multi-task on field ultrasound scanner with interchangeable probes.
iScan 2 MULTI. As versatile as you are!

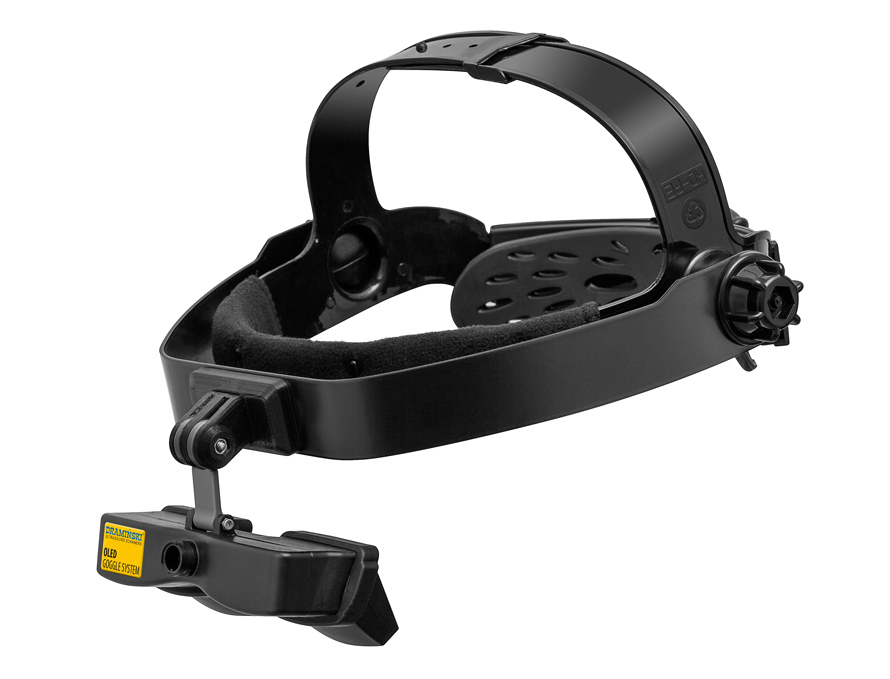

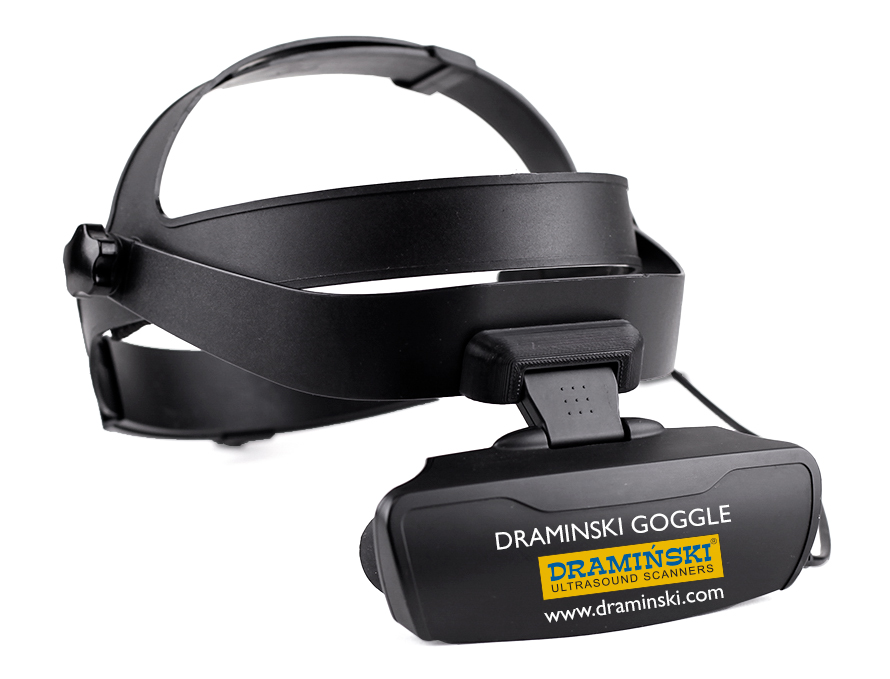

Efficient work in every conditions with DRAMIŃSKI Goggle System
This time our newest model of ultrasound video goggles is more comfortable, with excellent adjustment on the user’s head. If you examine a lot of animals in a row or work in very light rooms, these goggles with clear, legible image will make your work more comfortable.
Technologies of the future
- LCD Goggles
- OLED Goggles
What makes the DRAMINSKI iScan 2 MULTI the perfect choice?
- WIDE RANGE OF AVAILABLE PROBES
- NEW IMAGE QUALITY
- LARGE SCREEN MEANS GREATER EXAMINATION PRECISION
- HIGH PERFORMANCE, NON-STOP
- START DIAGNOSTICS IN A FEW SECONDS
- STURDY AS ALWAYS, LIGHTER THAN YOU COULD THINK
- CLEANING AND DISINFECTION
- ACCESSORIES
The set includes:
- DRAMINSKI iScan2 MULTI ultrasound scanner
- Ultrasound probe*
- External battery
- Battery charger with 230V charging cable
- USB storage adapter
- Suspenders
- Transport case
- User guide (USB)
Technical Data
| Dimensions | 255,6 x 165 x 69,15 mm |
|---|---|
| Weight of the device | scanner and the battery — 2060 g |
| Purpose | Ultrasound diagnostics of animals: reproductive system diagnostics, pregnancy confirmation and monitoring, measurement of backfat thickness, ultrasound examination of lungs, digestive system, urinary tract, musculosceletal system, and eyeball. |
| Image display modes | screen, goggles, screen rotated 90° left or right, screen rotated 180° |
| Image refreshing | up to 28 FPS |
| Greyscale | 256 shades |
| Gamma | 10 settings |
| Image projection | B Mode, B+B Mode, B+M Mode |
| Image management | freeze, dimensioning, zoom 60-200% at 20% increments, saving to internal memory, exporting to external storage device |
| Measurements | distance, area, volume, grid, age tables (Cow CRL, Cow BPD, Horse DSG, Horse DO, Sheep CRL, Lama BPD) |
| Saving data to the memory | image with measurements, cine loop (256 frames) |
| Memory | 200 images, 200 cine loops |
| Data export | Yes, to an external storage device |
| File format | BMP, AVI |
| Quick access menu | Yes, customized |
| Presets | Reproductive tract, Pregnancy, Sex of foetus, Late pregnancy. One’s own preset can be set. |
| LuciD noise reduction and contrast improvement) | Yes |
| Probes | ABDOMINAL: Convex 3,5 MHz R60 Convex 5MHz R50 Linear 10MHz L40 Microconvex 6,5MHz R15 Microconvex 6,5 MHz R11 RECTAL: Linear rectal 7MHz L60 Convex rectal 5MHz R60 Microconvex rectal 5MHz R20 SPECIALIZED: OPU 6,5 MHz R11 Linear Backfat 3,7 MHz L150 Linear Backfat 3,7 MHz L180 Micrconvex endocavitary 6,5MHz R10 Linear endocavitary 7,5 MHz L40 |
| Probe recognition | Automatic |
| Probes | interchangeable, electronic, broadband |
| Screen | 7,0″ diagonal |
| Controls | membrane, water-proof keyboard |
| Power supply | Li-Ion 14.4 V, 6.8 Ah |
| when the battery is fully charged | up to 7 hours |
| Charging of the battery pack | 4 hours |
| Battery charge indicator | Automatic — graphic indicator |
| Dust and water resistance | IP32. Protection against item larger than 2.5 mm, protection against water dripping at the maximum of 15°. |
| Operating temperature | -15°C to +45°C |
| Recommended storage temperature | 0°C to +45°C |
| Optional accessories | Goggles, screen sun shield, linear rectal probe extension for cattle, linear rectal probe extension for sheep, battery support, gel stand-off |
